Single-conductor cables designed for low voltage electric installations in vehicles.

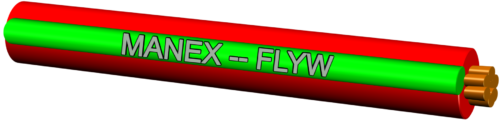

FLYW – automotive low voltage cable (FL) with reinforced insulation (W) made of PVC (Y)
Conductor:
Copper, multi wire, flexible (acc. to ISO 6722-1)
Insulation:
PVC, class C (acc. to ISO 6722-1)
Working temperature:
-40°C ÷ 125°C
Standard: ISO 6722-1; ECE-R 118
Cables conform to the requirements of REACH Regulation and RoHS Directive.
| Nominal cross-section | Conductor structure | Resistance at 20°C | Wall insulation thickness | Outer diameter of cable | ||
|---|---|---|---|---|---|---|
| Number of wires | Single wire diameter | |||||
| (max.) | (max.) | (nom.) | (min.) | (max.) | ||
| mm2 | mm | mΩ/m | mm | mm | ||
| 0,50 | 16 | 0,21 | 37,1 | 0,60 | 2,0 | 2,3 |
| 0,75 | 24 | 0,21 | 24,7 | 0,60 | 2,2 | 2,5 |
| 1,00 | 32 | 0,21 | 18,5 | 0,60 | 2,4 | 2,7 |
| 1,50 | 30 | 0,26 | 12,7 | 0,60 | 2,7 | 3,0 |
| 2,00 | 40 | 0,26 | 9,42 | 0,60 | 3,0 | 3,3 |
| 2,50 | 50 | 0,26 | 7,6 | 0,70 | 3,3 | 3,6 |
| 3,00 | 44 | 0,31 | 6,15 | 0,70 | 3,8 | 4,1 |
| 4,00 | 56 | 0,31 | 4,71 | 0,80 | 4,0 | 4,4 |
| 6,00 | 84 | 0,31 | 3,14 | 0,80 | 4,6 | 5,0 |
| 10,00 | 80 | 0,41 | 1,82 | 1,00 | 5,9 | 6,5 |
| 16,00 | 126 | 0,41 | 1,16 | 1,00 | 7,7 | 8,3 |
| 25,00 | 196 | 0,41 | 0,743 | 1,30 | 9,4 | 10,4 |
| 35,00 | 276 | 0,41 | 0,527 | 1,30 | 9,6 | 11,6 |
| 50,00 | 400 | 0,41 | 0,368 | 1,50 | 11,5 | 13,5 |
| 70,00 | 555 | 0,41 | 0,259 | 1,50 | 13,5 | 15,5 |
| 95,00 | 740 | 0,41 | 0,196 | 1,60 | 16,0 | 18,0 |
| 120,00 | 960 | 0,41 | 0,153 | 1,60 | 17,7 | 19,7 |
