General purpose, low voltage, single-conductor power cables, without sheath and with insulation made of thermoplastic PVC.

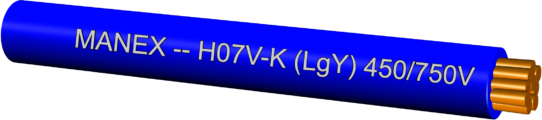

H07V-K – cable manufactured according to a harmonized standard (H), for rated voltage 450/750V (07), with PVC insulation (V) and multi-wire flexible conductor (K)
Conductor:
Copper, multi-wire, flexible class 5 (acc. to EN 60228)
Insulation:
PVC – TI 1 acc. to HD 50363-3
Working temperature:
up to ÷ 70°C
Standard: PN-EN 50525-2-31
Cables conform to the requirements of REACH Regulation and RoHS Directive.
| Nominal cross-section | Single wire diameter | Resistance at 20°C | Wall insulation thickness | Outer diameter of cable | |
|---|---|---|---|---|---|
| (max.) | (max.) | (nom.) | (min.) | (max.) | |
| mm2 | mm | mΩ/m | mm | mm | |
| 1,50 | 0,26 | 13,3 | 0,7 | 2,8 | 3,4 |
| 2,50 | 0,26 | 7,98 | 0,8 | 3,4 | 4,1 |
| 4,00 | 0,31 | 4,95 | 0,8 | 3,9 | 4,8 |
| 6,00 | 0,31 | 3,30 | 0,8 | 4,4 | 5,3 |
| 10,00 | 0,41 | 1,91 | 1,0 | 5,7 | 6,8 |
| 16,00 | 0,41 | 1,21 | 1,0 | 6,7 | 8,1 |
| 25,00 | 0,41 | 0,78 | 1,2 | 8,4 | 10,2 |
| 35,00 | 0,41 | 0,554 | 1,2 | 9,7 | 11,7 |
| 50,00 | 0,41 | 0,386 | 1,4 | 11,5 | 13,9 |
| 70,00 | 0,51 | 0,272 | 1,4 | 13,2 | 16,0 |
| 95,00 | 0,51 | 0,206 | 1,6 | 15,1 | 18,2 |
| 120,00 | 0,51 | 0,161 | 1,6 | 16,7 | 20,2 |
