General purpose, low voltage, single-conductor power cables, without sheath and insulation made of thermoplastic PVC.

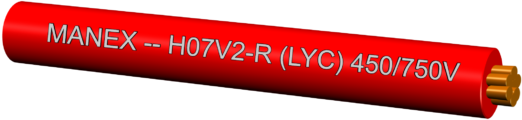

H07V2-R – cable manufactured according to a harmonized standard (H), for rated voltage 450/750V (07), with PVC heat-resistant insulation (V2) and multi-wire rigid conductor (R)
Conductor:
Copper, multi-wire, rigid class 2 (acc. to EN 60228)
Insulation:
PVC – TI 3 acc. to HD 50363-3
Working temperature:
up to ÷ 90°C
Standard: PN-EN 50525-2-31
Cables conform to the requiremnents of REACH Regulation and RoHS Directive.
| Nominal cross-section | Single wire diameter | Resistance at 20°C | Wall insulation thickness | Outer diameter of cable | |
|---|---|---|---|---|---|
| (max.) | (max.) | (nom.) | (min.) | (max.) | |
| mm2 | mm | mΩ/m | mm | mm | |
| 1,50 | 0,6 | 12,1 | 0,7 | 2,7 | 3,3 |
| 2,50 | 0,7 | 7,41 | 0,8 | 3,3 | 4,0 |
| 4,00 | 0,9 | 4,61 | 0,8 | 3,8 | 4,6 |
| 6,00 | 1,2 | 3,08 | 0,8 | 4,3 | 5,2 |
| 10,00 | 1,4 | 1,83 | 1,0 | 5,6 | 6,7 |
| 16,00 | 1,8 | 1,15 | 1,0 | 6,4 | 7,8 |
| 25,00 | 2,2 | 0,727 | 1,2 | 8,1 | 9,7 |
| 35,00 | 2,6 | 0,524 | 1,2 | 9,0 | 10,9 |
| 50,00 | 1,8 | 0,387 | 1,4 | 10,6 | 12,8 |
| 70,00 | 2,2 | 0,268 | 1,4 | 12,1 | 14,6 |
| 95,0 | 2,6 | 0,193 | 1,6 | 14,1 | 17,1 |
