General purpose, low voltage, single-conductor power cables, without sheath and with insulation made of thermoplastic PVC.

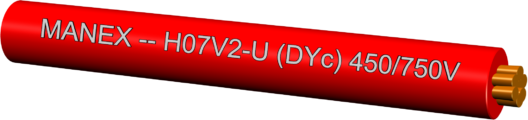

H07V2-U – cable manufactured according to a harmonized standard (H), for rated voltage 450/750V (07), with PVC heat-resistant insulation (V2) and single-wire conductor (U)
Conductor:
Copper, single-wire, class 1 (acc. to EN 60228)
Insulation:
PVC – TI 3 acc. to HD 50363-3
Working temperature:
up to ÷ 90°C
Standard: PN-EN 50525-2-31
Cables conform to the requirements of REACH Regulation and RoHS Directive.
| Nominal cross-section | Single wire diameter | Resistance at 20°C | Wall insulation thickness | Outer diameter of cable | |
|---|---|---|---|---|---|
| (max.) | (max.) | (nom.) | (min.) | (max.) | |
| mm2 | mm | mΩ/m | mm | mm | |
| 1,50 | 1,5 | 12,1 | 0,7 | 2,6 | 3,2 |
| 2,50 | 1,9 | 7,41 | 0,8 | 3,2 | 3,9 |
| 4,00 | 2,4 | 4,61 | 0,8 | 3,6 | 4,4 |
| 6,00 | 2,9 | 3,08 | 0,8 | 4,1 | 5,0 |
| 10,00 | 3,7 | 1,83 | 1,0 | 5,3 | 6,4 |
