Low voltage power cables for rated voltage not exceeding 450/750V, with specific properties in reaction to fire, with halogen-free insulation and with low emission of smoke.

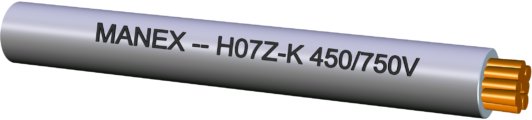

H07Z-K – cable manufactured according to a harmonized standard (H), for rated voltage 450/750V (07), with insulation made of halogen-free blend (Z) and multi-wire flexible conductor (K)
Conductor:
Copper, multi-wire, flexible class 5 (acc. to EN 60228)
Insulation:
Halogen-free blend, type EI5 (acc. to PN-EN 50363-5)
Working temperature:
up to +90°C
Standard: PN-EN 50525-3-41
Cables conform to the requirements of REACH Regulation and RoHS Directive.
| Nominal cross-section | Single wire diameter | Resistance at 20°C | Wall insulation thickness | Outer diameter of cable | |
|---|---|---|---|---|---|
| (max.) | (max.) | (nom.) | (min.) | (max.) | |
| mm2 | mm | mΩ/m | mm | mm | |
| 1,5 | 0,26 | 13,300 | 0,7 | 2,8 | 3,5 |
| 2,5 | 0,26 | 7,980 | 0,8 | 3,4 | 4,3 |
| 4 | 0,31 | 4,950 | 0,8 | 3,9 | 4,9 |
| 6 | 0,31 | 3,300 | 0,8 | 4,4 | 5,5 |
| 10 | 0,41 | 1,910 | 1,0 | 5,7 | 7,1 |
| 16 | 0,41 | 1,210 | 1,0 | 6,7 | 8,4 |
| 25 | 0,41 | 0,780 | 1,2 | 8,4 | 10,6 |
| 35 | 0,41 | 0,554 | 1,2 | 9,7 | 12,1 |
| 50 | 0,41 | 0,386 | 1,4 | 11,5 | 14,4 |
| 70 | 0,51 | 0,272 | 1,4 | 13,2 | 16,6 |
| 95 | 0,51 | 0,206 | 1,6 | 15,1 | 18,8 |
| 120 | 0,51 | 0,161 | 1,6 | 16,7 | 20,9 |
