Power, PVC insulated cables used in railway rolling stock. Single-conductor cables for 750V rated voltage, fixed-mounted in electric installations of railway rolling stock.

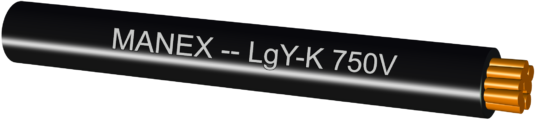

LgY-K 750V – cable with multi-wire conductor (L), flexible (g), with PVC insulation (Y), for railway rolling stock (-K), typical performance
Conductor:
Copper, multi-wire, flexible, class 5 (acc. to EN 60228)
Insulation:
PVC (acc. to PN-88/E-90115)
Permissible long-term working temperature:
-30°C ÷ +65°C
Max permissible long-term working temperature of conductor:
+70°C
Rated voltage:
750V
Standard: PN-88/E-90116
Cables conform to the requirements of REACH Regulation and RoHS Directive.
| Nominal cross-section | Single wire diameter | Resistance at 20°C | Wall insulation thickness | Outer diameter of cable | |
|---|---|---|---|---|---|
| (max.) | (max.) | (nom.) | (min.) | (max.) | |
| mm2 | mm | mΩ/m | mm | mm | |
| 0,75 | 0,21 | 26,000 | 0,8 | 3,2 | |
| 1 | 0,21 | 19,500 | 0,8 | 3,3 | |
| 1,5 | 0,26 | 13,300 | 0,8 | 3,6 | |
| 2,5 | 0,26 | 7,980 | 0,9 | 4,3 | |
| 4 | 0,31 | 4,950 | 1,0 | 5,1 | |
| 6 | 0,31 | 3,300 | 1,0 | 6,3 | |
| 10 | 0,41 | 1,910 | 1,2 | 7,8 | |
| 16 | 0,41 | 1,210 | 1,2 | 9,3 | |
| 25 | 0,41 | 0,780 | 1,4 | 11,5 | |
| 35 | 0,41 | 0,554 | 1,4 | 12,3 | |
| 50 | 0,41 | 0,386 | 1,6 | 14,3 | |
| 70 | 0,51 | 0,272 | 1,6 | 16,5 | |
| 95 | 0,51 | 0,206 | 1,8 | 19,9 | |
| 120 | 0,51 | 0,161 | 1,8 | 20,9 | |
