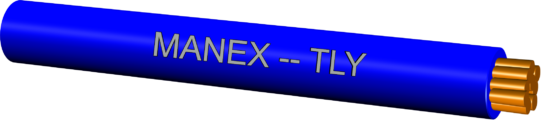

Single-conductor cables used in telecommunication and assembly works.
Conductor:
Copper, flexible, stranded from soft wires.
Insulation:
PVC
Working temperature:
-10°C ÷ +70°C
Working voltage:
150V
Min. bending ratio:
10x diameter
SPECIAL VERSION
TLYc
Cables, which insulation is made of 90°C heat-resistant PVC
(TLYc 105°C – 105°C heat-resistant PVC made on request).
STANDARD: PN-91/T-90206
Cables conform to the requirements of REACH Regulation and RoHS Directive.
| Nominal cross-section | Single wire diameter | Resistance at 20°C | Wall insulation thickness | Outer diameter of cable | |
|---|---|---|---|---|---|
| (max.) | (max.) | (nom.) | (min.) | (max.) | |
| mm2 | mm | mΩ/m | mm | mm | |
| 0,12 | 0,16 | 155,000 | 0,2 | 0,9 | |
| 0,22 | 0,16 | 89,300 | 0,22 | 1,1 | |
| 0,35 | 0,16 | 57,200 | 0,40 | 1,6 | |
| 0,5 | 0,16 | 38,800 | 0,40 | 1,8 | |
| 0,75 | 0,16 | 25,800 | 0,40 | 2,0 | |
| 1 | 0,21 | 19,100 | 0,50 | 2,6 | |
| 1,5 | 0,26 | 13,000 | 0,50 | 2,9 | |
